DUET
Glass Doors
DUET is from our Atelier, made to order, range of solutions.
DUET features a double layer of glass.
For sliding doors, the full height handle is integrated into the aluminium door profile, and is finished to match the profile.
Pocket doors feature an inset handle 950mm from the floor and a pull in the door edge. The inset handle can also be chosen with the option of a key lock or privacy lock with thumb turn and release.
Doors are 38.5mm thickness overall, including two layers of 4mm thick safety glass.
Clear, etched, reflective and tinted glasses are 4mm toughened.
As they are transparent or translucent, these glasses have a backpainted perimeter band to conceal the aluminium frame.
Coloured glasses and mirror glass are made with safety backing inside the door in the form of glueing the glass to a 29mm accoustic filler panel.
SLIDING DOORS [each door]:
600mm minimum door width - 1200mm maximum door width x 2900mm maximum door height
SINGLE POCKET DOORS:
600mm minimum passage width - 1200mm maximum passage width x 2600mm maximum passage height
DOUBLE POCKET DOORS:
1200mm minimum passage width - 2400mm maximum passage width x 2600mm maximum passage height

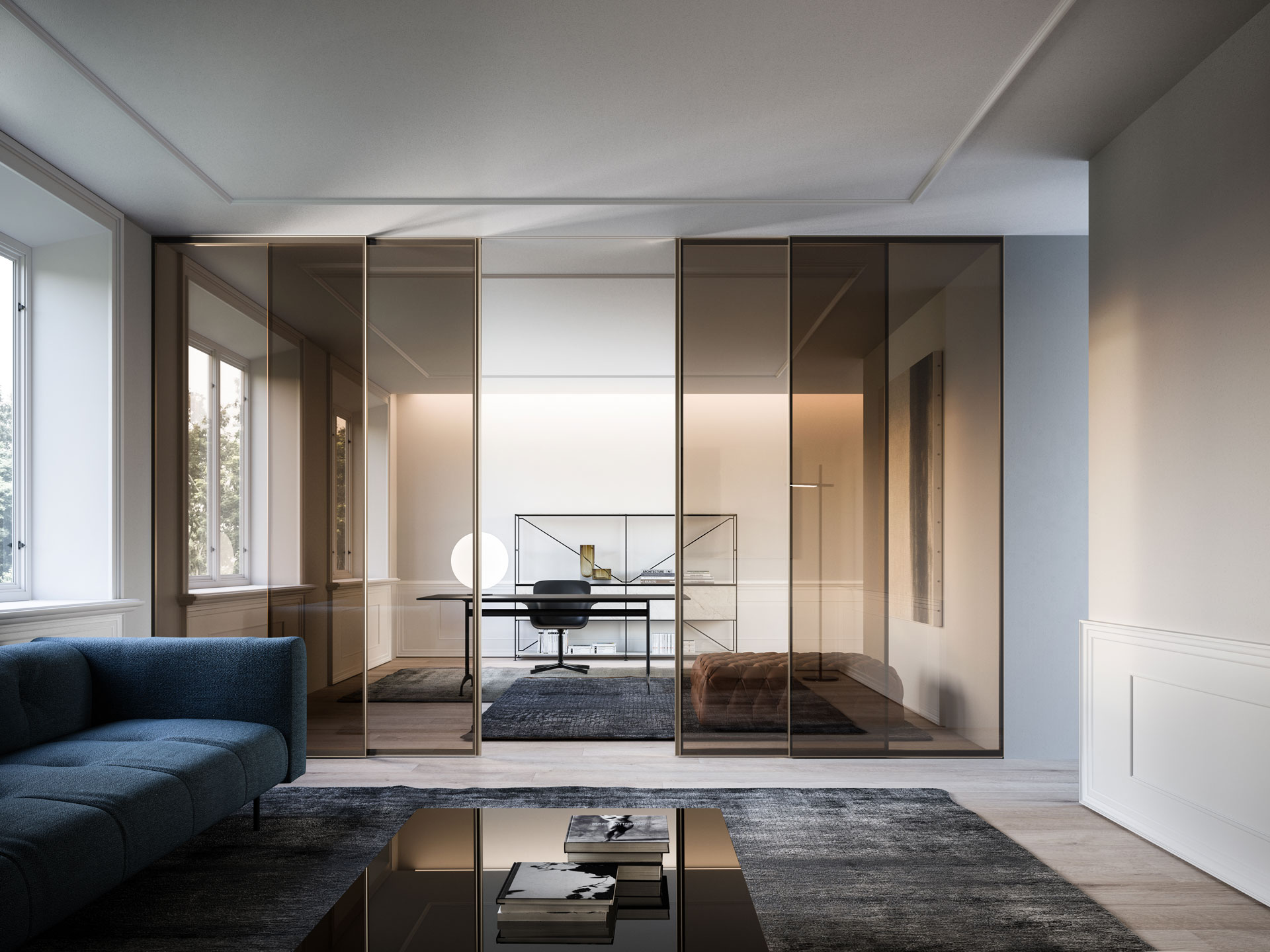

Image shows Duet double doors sliding over outer fixed panels.
Bronze tinted transparent glass, sliding rail concealed in the ceiling, aluminium profiles and handles in bronze.

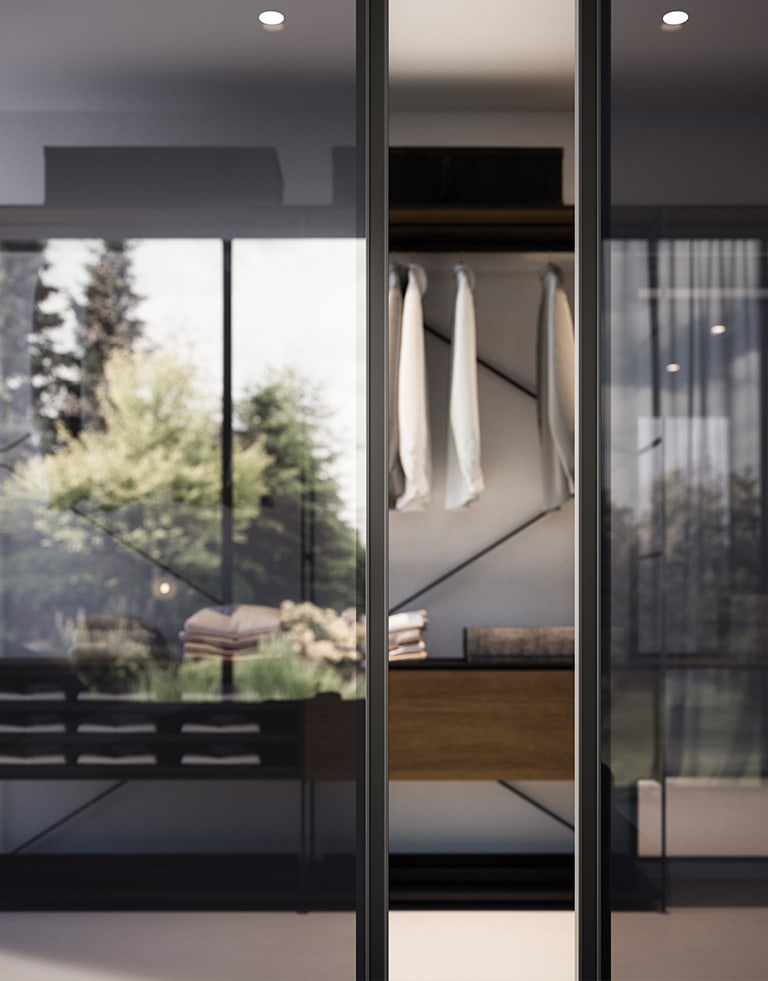

Full height integrated handle

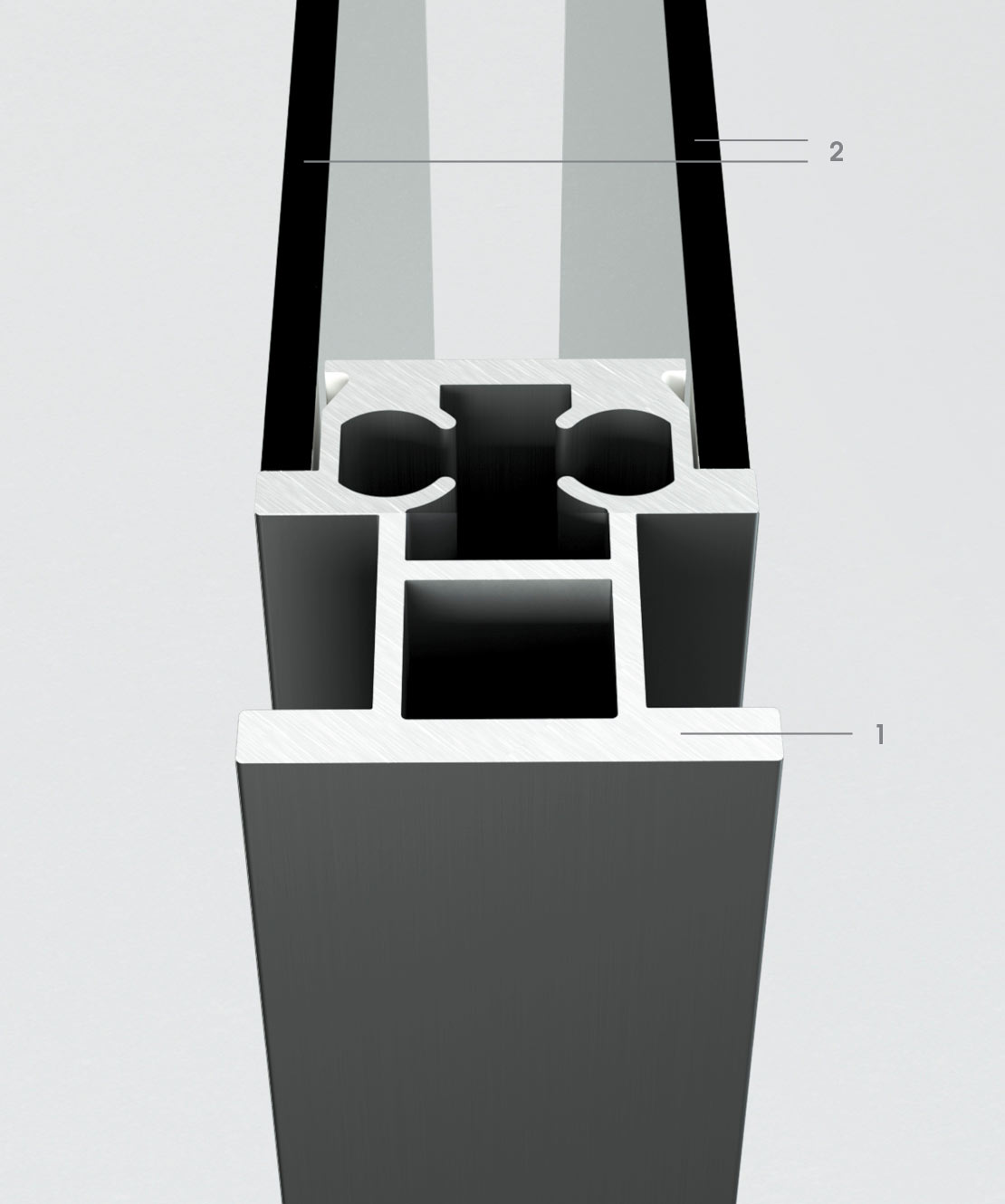

Duet Cross Section door with handle
Duet Corner Section door with handle

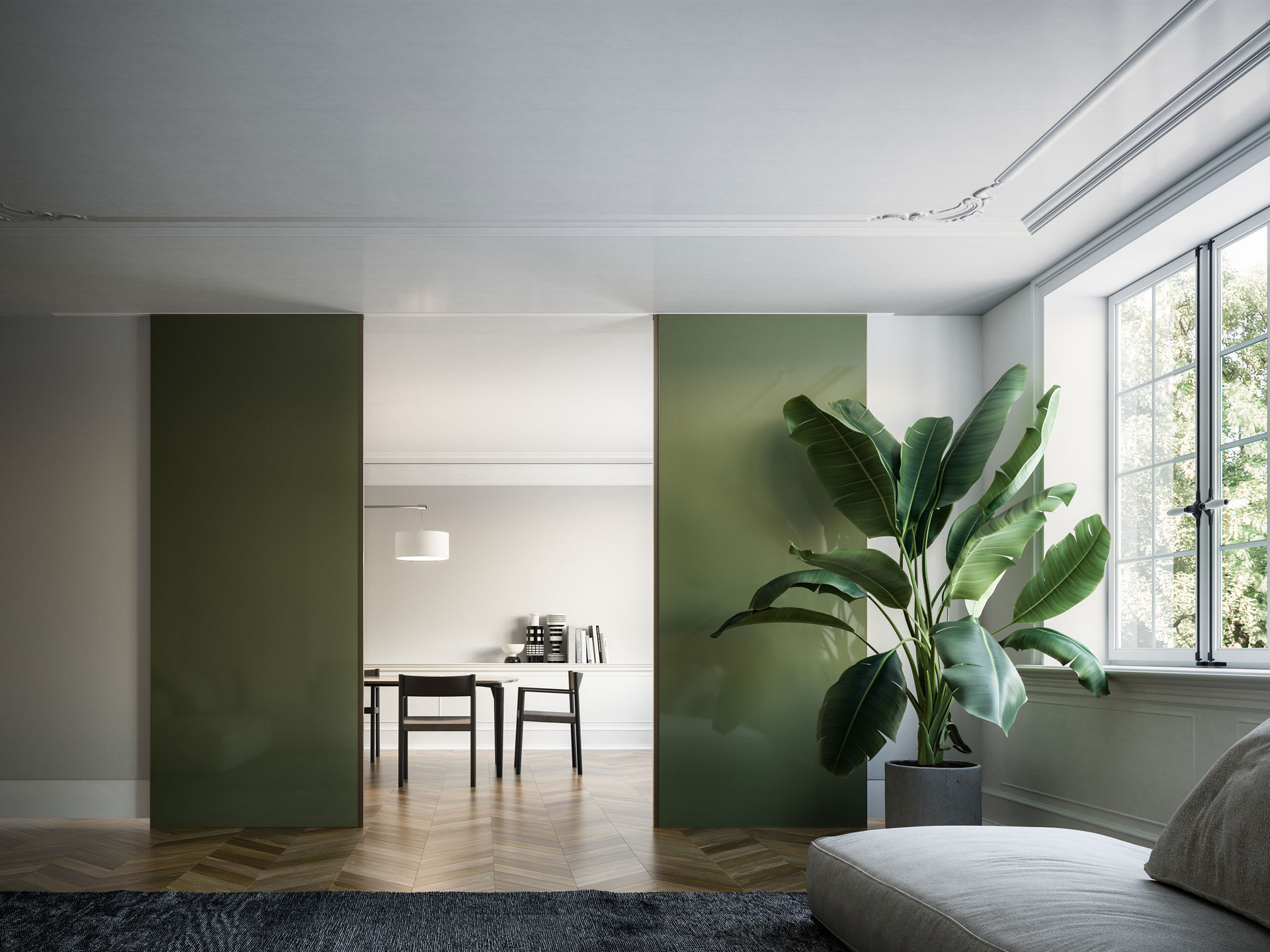

Double doors with Olive coloured glass
Double doors and panels with tinted glass

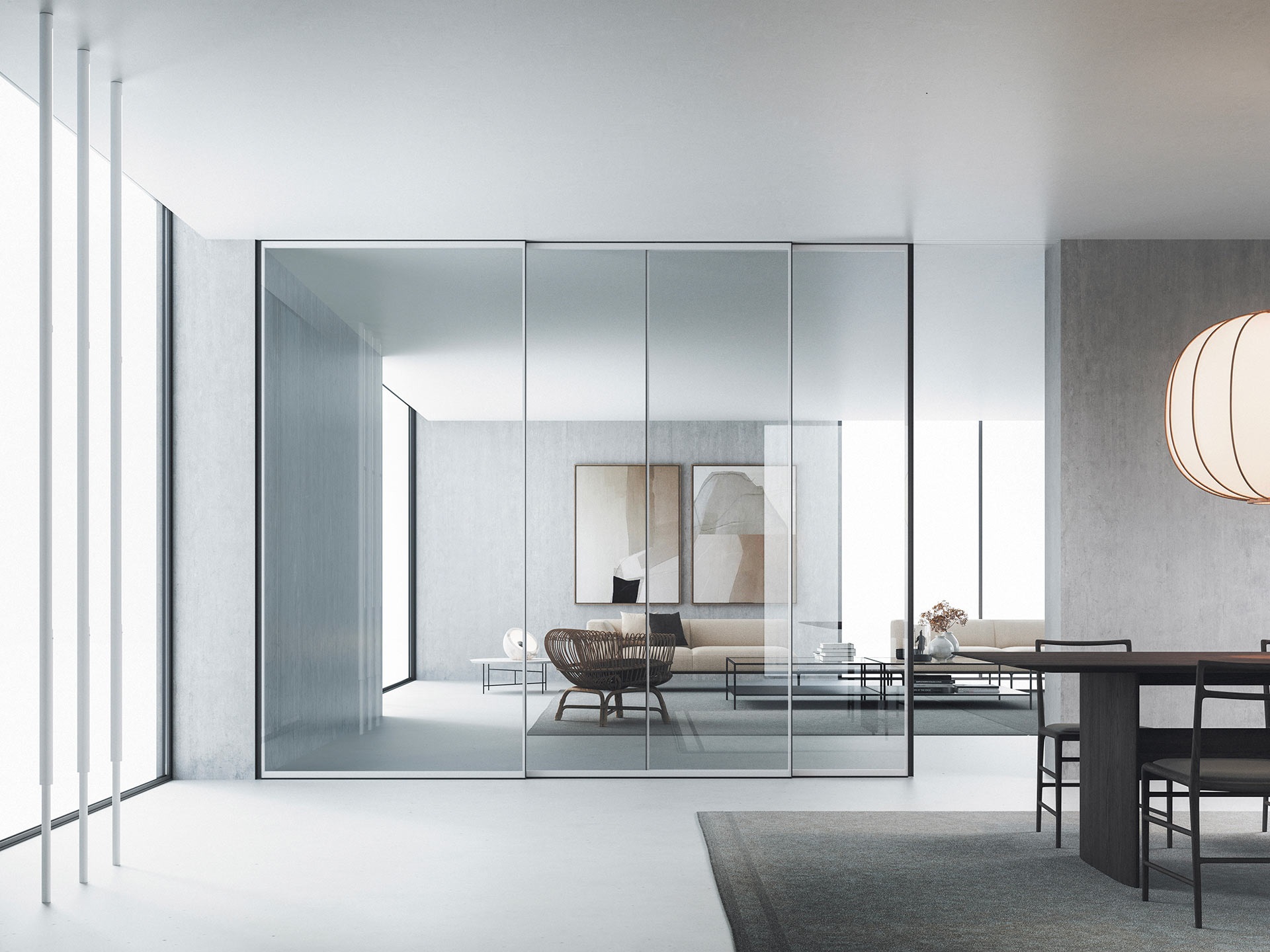

Telescopic three door with clear glass

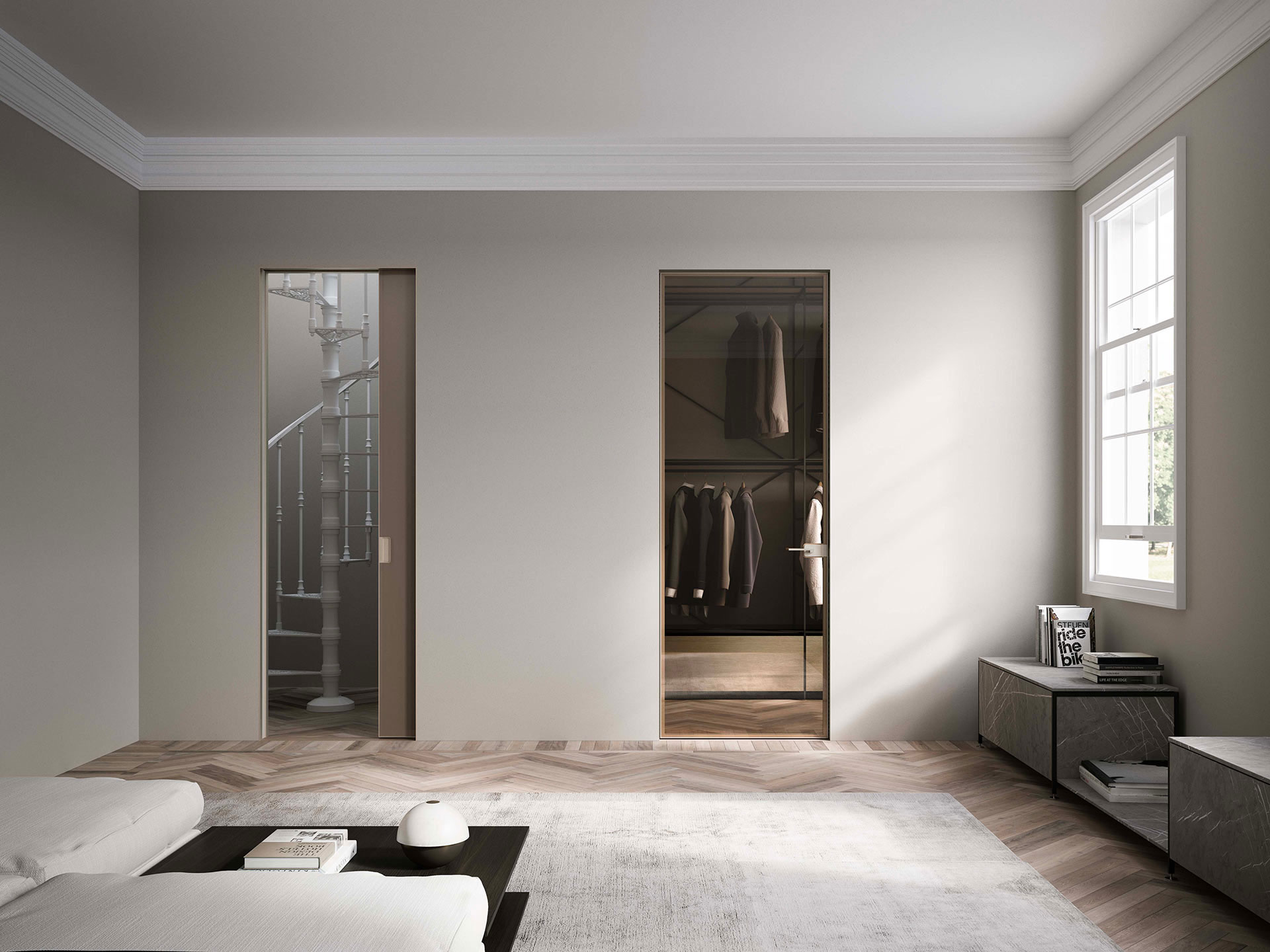

Image shows Duet pocket door (left) and hinged door (right)
Left is colour lacquered opaque glass in Hazelnut. Right is a hinged door set with transparent glass. Door profiles are in bronze.

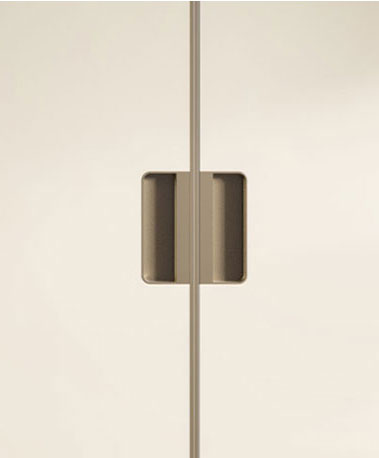

Flush handles

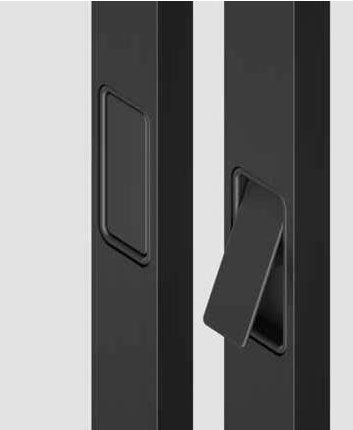

Edge Pull

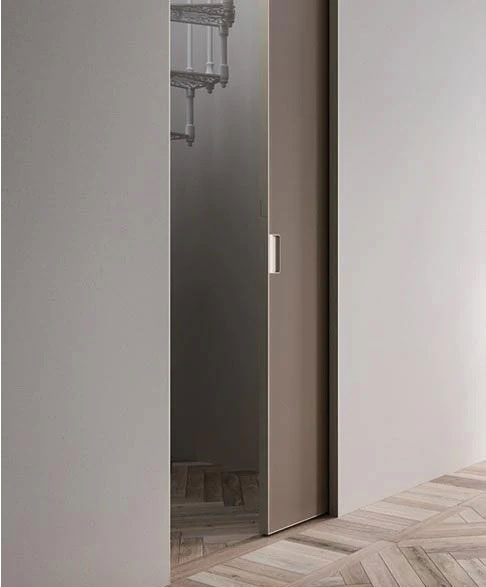

Pocket Door
Double doors with Hazelnut coloured glass

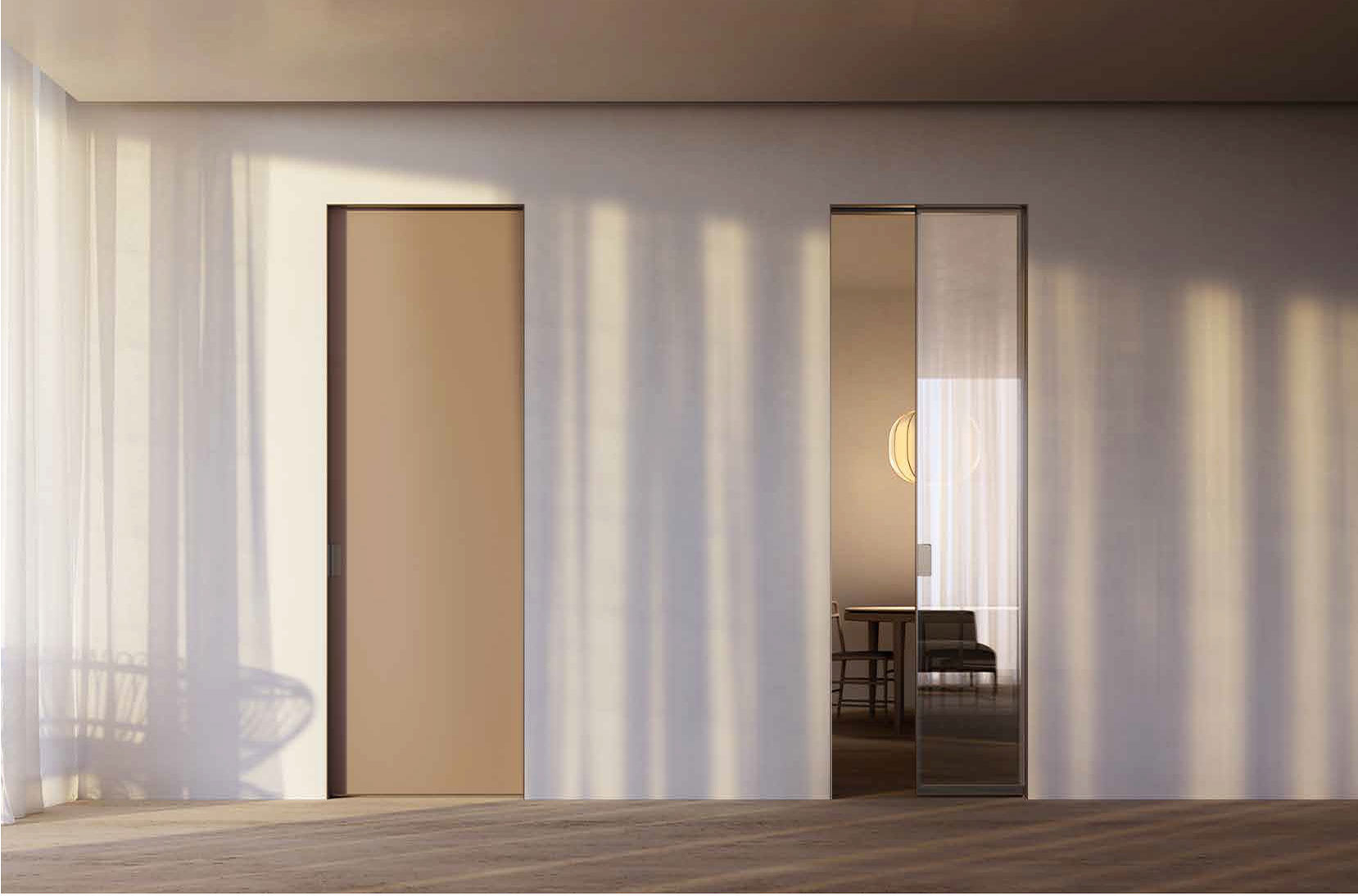

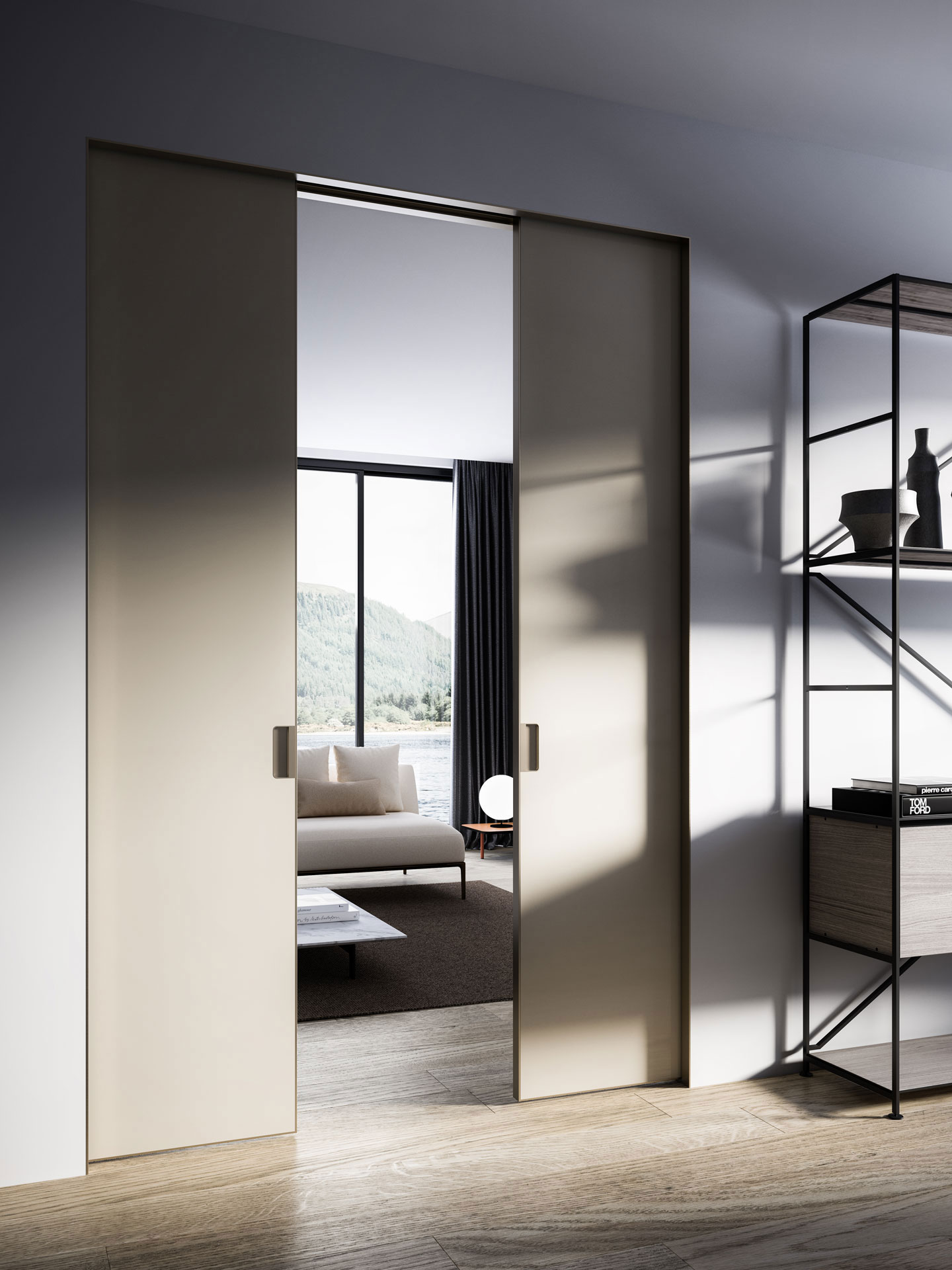

Pocket doors - coloured and reflective glass
